BTA 25 Serise Triacs
YZPST-BTA25
█ Feature
◆The third quadrant sensitine trigger structure ,
The best match for commutating ability and gate sensitivity .
◆Diffusion and glass passivated technolgy.
Ensure specification reliability and uniformity.
◆Match the appropritate gate specification as high temperature requirement.

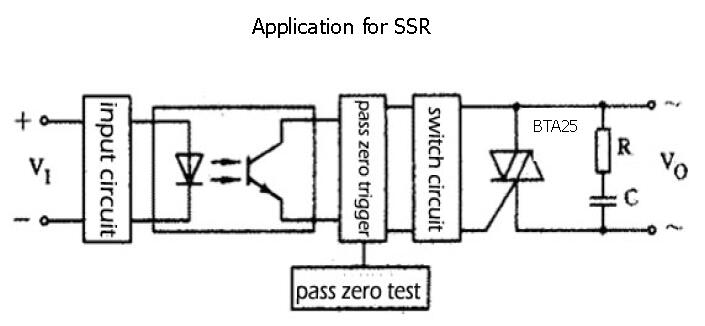

█ Main application
◆Washing machine vacuum cleaner dimmer.remote switch .
◆AC moter conrtol equipment.
◆Switching inductive load.
█ Outline and pin array
TO-220
█ Rate value (unless special shows , Tj=25℃)
| Description | symbol | value | unit |
| Repetitive paek off-state voltage (Tj= −40 ~125℃) Half sine wave 50Hz, gate open
-600
| VDRM VRRM |
600 600
| V |
| Nominal RMS on-state current Full sine wave 50 Hz | IT(RMS) | 25 | A |
| Non-repetitive peak surge current (junction temperature Tj =25℃) One cycle 50 Hz | ITSM | 250 | A |
| Fuse current (t = 8.3 ms) | I2t | 340 | A2s |
| Gate average power (TC =80℃, t = 8.3 ms) | PG(AV) | 1 | W |
| Gate peak current (t≤2.0μs) | IGM | 4 | A |
| Work junction temperature | TJ | -40~125 | ℃ |
| Storage temperature | Tstg | -40~150 | ℃ |
█ Thermal characteristics
| Description | Symbol | Max | Unit |
| Thermal resistance ( junction to arround ) | Rj A | 60 | °C/W |
█ Electic characteristics (unless special shows Tj=25℃)
| Description | Symbol | Min | Type | Max | Unit |
| Repetitive paek off-state current (VD = Rated VDRM,VRRM gate open ) Tj = 125℃ | IDRM, IRRM |
−
|
−
|
3
| mA |
| Peak on-state Voltage (IT =25A) | VT | − | 1.45 | 1.65 | V |
| Gate trigger current (VD = 12 V, RL =30Ω) MT2(+), G(+) MT2(+), G(−) MT2(−), G(−) -CW
MT2(+), G(+) MT2(+), G(−) MT2(−), G(−) -BW
| IGT |
− − −
− − −
|
− − −
− − −
|
35 35 35
50 50 50
| mA |
| Gate trigger voltage (VD = 12 V, RL =30Ω) MT2(+), G(+) MT2(+), G(−) MT2(−), G(−) All serises
| VGT |
− − −
|
− − −
|
1.3 1.3 1.3
| V |
| Gate non-trigger voltage (VD = VDR, RL =3.3KΩ,Tj =125℃) All serises | VGD | 0.2 | − | − | V |
| Hold current (Candution current IT=100mA) | IH | − | − | 75 | mA |
