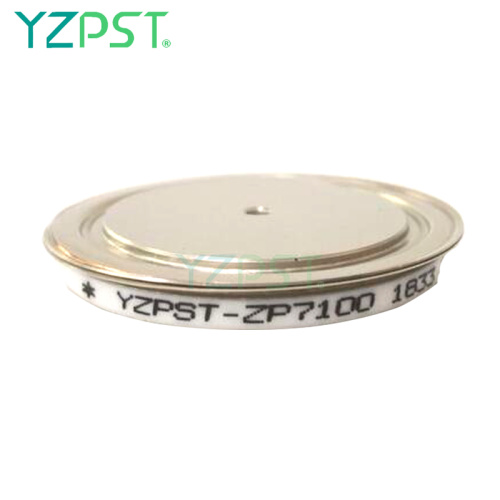

GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER
YZPST-ZP7100-02
Features:
. All Diffused Structure
. High Surge rating
. Blocking capabilty up to 400 volts
. Rugged Ceramic Hermetic Package
. Pressure Assembled Device
ELECTRICAL CHARACTERISTICS AND RATINGS
Reverse Blocking
| Device Type | VRRM (1) | VRSM (1) |
| GMDZP7100-02 | 200 | 250 |
VRRM = Repetitive peak reverse voltage
VRSM = Non repetitive peak reverse voltage (2)
| Repetitive peak reverse leakage | IRRM | 50 mA (3) |
Notes: All ratings are specified for Tj=25 oC unless otherwise stated. (1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range -40 to +170 oC. (2) 10 msec. max. pulse width (3) Maximum value for Tj = 170 oC. (4) See parameter definition below :
Conducting - on state
| Parameter | Symbol | Min. | Max. | Typ. | Units | Conditions |
| Average value of on-state current | IF(AV)M |
| 7110 |
| A | Sinewave,180o conduction,Tc=85 oC
|
| Peak one cycle surge (non repetitive) current |
IFSM |
| 55000
|
| A
| 10.0 msec,VR=0V Tvjmax
|
| Peak on-state voltage | VFM |
| 1.10 |
| V | IFM =5000A; Tj = 25 oC
|
| Forward conduction thresheld voltage | Vo |
| 0.726 |
| V | Tj = 170 oC
|
| Forward conduction slope resistance | r |
| 0.024 |
| mΩ | Tj = 170 oC
|
* For guaranteed maximum values, contact factory
Parameter Symbol Min. Max. Typ. Units Conditions Operating temperature Tj -40 +170 oC Storage temperature Tstg -40 +170 oC Thermal resistance - junction to sink RQ (j-hs) 0.015 oC/W Double side cooled Mounting force P 19 26 kN Weight W 400 g
* Mounting surfaces smooth, flat and greased
Product Categories : Semiconductor Disc Devices(Capsule Type) > Welding Diode
