Home > Products > Other Capacitors > Hot selling MKMJ 160KVdc 0.3UF Capacitor

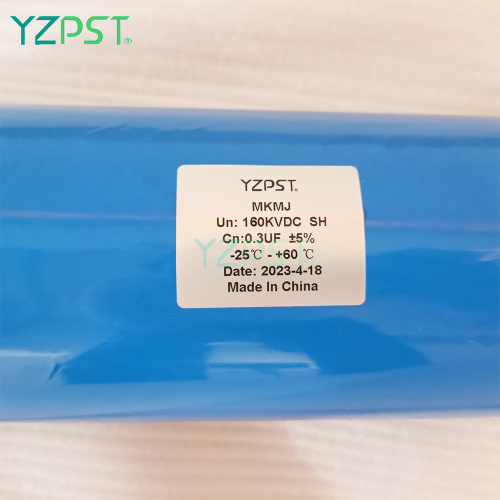

Hot selling MKMJ 160KVdc 0.3UF Capacitor

  • $530
    1-49
    Piece/Pieces
  • $450
    ≥50
    Piece/Pieces
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.YZPST-MKMJ-160KVDC-0.3UF

BrandYZPST

Place Of OriginChina

Allowable Deviation Of Electrical Capaci± 5%

Insulation Resistance10,000 MΩ (1,000 Vdc, 1min)

Loss Angle Shear Value0.0020 (1000Hz)

Release Peak Current4.6A

Rated Voltage160 KVdc

Nominal Capacity0.3 uF

Supply Ability & Additional Information

Packaging1. Anti-electrostatic packaging 2. Carton box 3. braid

Productivity10000

TransportationOcean,Land

Place of OriginCHINA

Supply Ability10000

PortSHANGHAI

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
1. Anti-electrostatic packaging 2. Carton box 3. braid

Capacitor YZPST-MKMJ-160KVDC-0.3UF

Technical performance indicators:

1.Rated voltage: 160 KVdc

2.Nominal capacity: 0.3 uF

3.Allowable deviation of electrical capacity: ± 5%

4.Insulation resistance: 10,000 MΩ (1,000 Vdc, 1min)

5.Loss angle shear value: 0.0020 (1000Hz)

6. Interpole pressure resistance: 180KVdc 10s

7.Release peak current: 4.6 KA

8.Maximum effective current: 33A

9.Size:Φ110*1200, see the left figure for details

10.Packaging method: cylindrical insulation shell, dry packaging

11. Lead method: 2-M8 copper nut

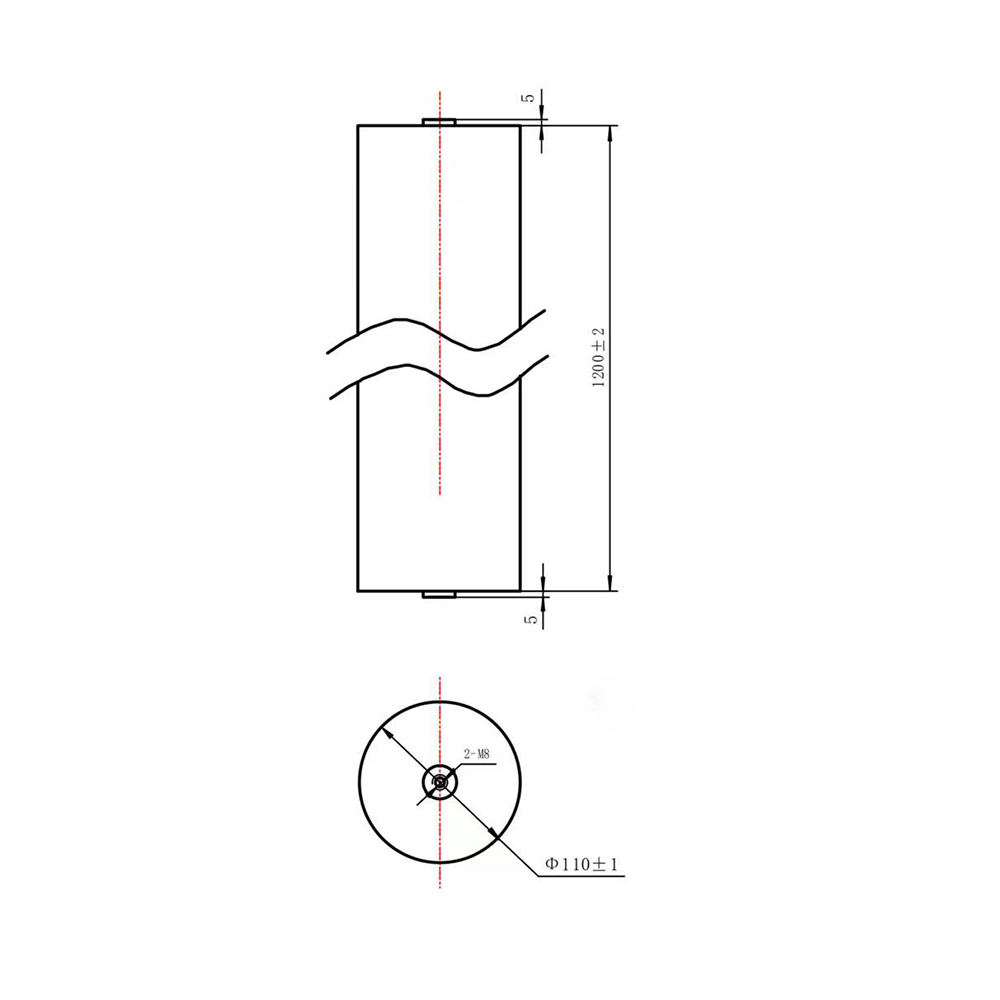

Dimensions:

MHJ160KVDC-1


Product Categories : Other Capacitors
