Model No.: YZPST-CBB60
Brand: YZPST
Supply Type: Original Manufacturer, Odm, Agency, Retailer, Other
Reference Materials: Photo, Other
Species: Polypropylene Film Capacitor, Capacitor Film
Package Type: Surface Mount
Specification: Not Applicable
Voltage-breakdown: Not Applicable
Rated Capacitance CR: 3.15uf 4uf 5uf
Tolerance: ±5%
Rated Voltage VR: 450VAC
Rated Frequency FR: 50/60 Hz
Packaging: 1. Anti-electrostatic packaging 2. Carton box 3. Plastic protective packaging
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: CHINA
Supply Ability: 50
Certificate: ISO9001-2008,ROHS
HS Code: 85322590
Port: Shanghai
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF

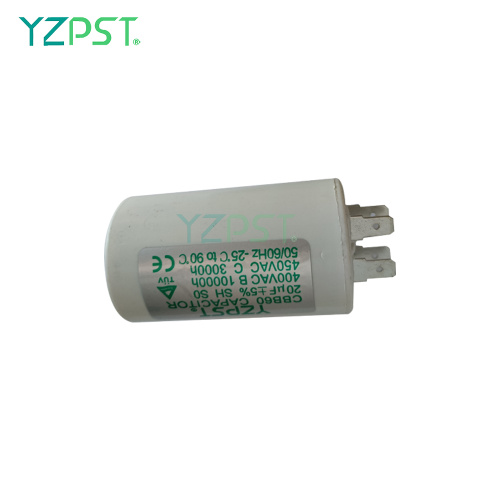

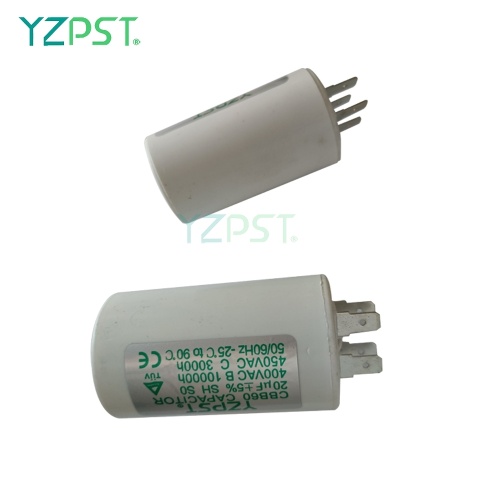

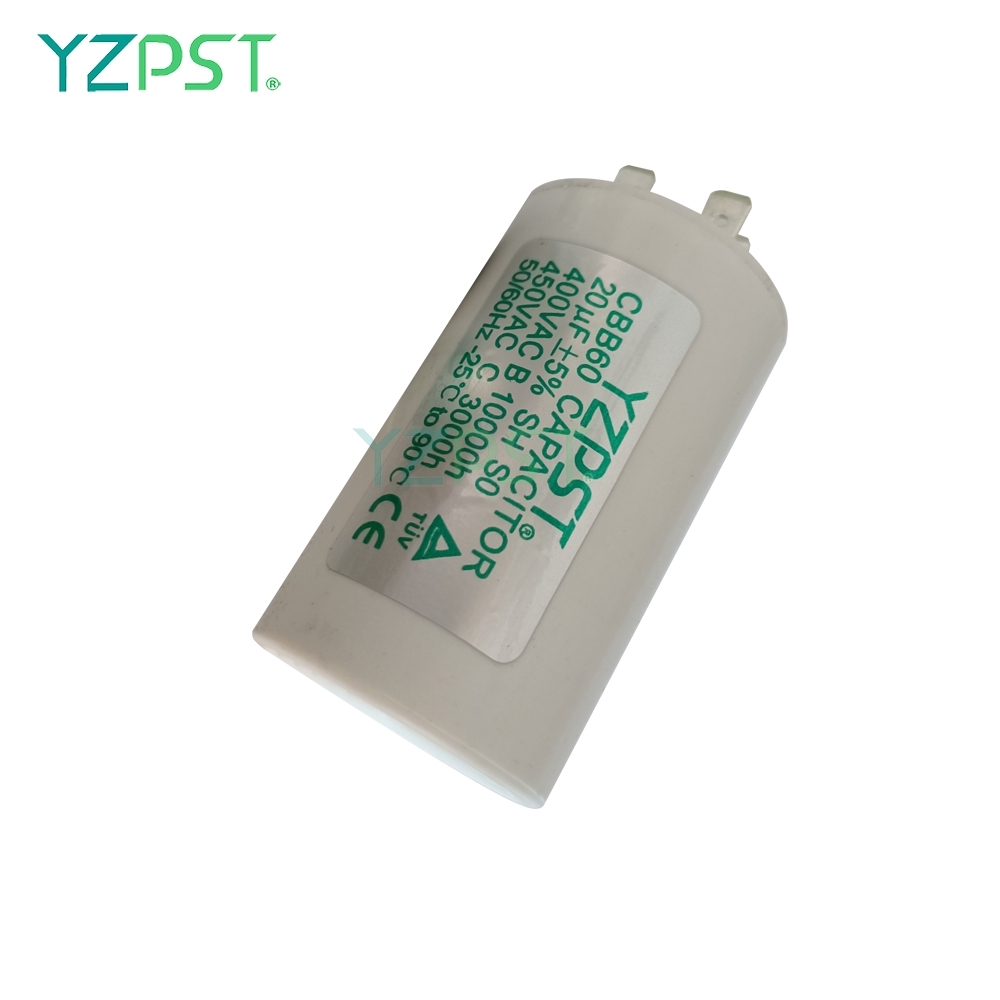

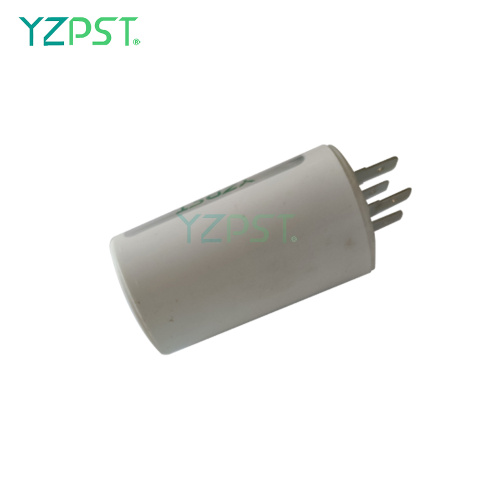

Film capacitors – AC capacitors
Motor Run Capacitors
| Technical data and specifications | |
| Reference standards | IEC 60252-1 ：：2011+A1 GB/T3667 |
| Safety class to IEC 60252-1 2001-02 | S0 |
| Life expectancy to IEC 60252 2001 | Class C |
| Rated capacitance CR | 3.15uf 4uf 5uf |
| Tolerance | ±5% |
| Rated voltage VR | 450VAC |
| Rated frequency fR | 50/60 Hz |
| Maximum ratings | |
| Maximum permissible voltage Vmax | 1.1 ∙ VR (VR = Rated voltage) |
| Maximum permissible current Imax | 1.3 ∙ IR (IR = Rated current) |
| Routine Test | |
| AC test voltage terminal to terminal VT | 2.0 ∙ VR, 10s |
| Technical data and specifications | |
| Reference standards | IEC 60252-1 ：：2011+A1 GB/T3667 |
| Safety class to IEC 60252-1 2001-02 | S0 |
| Life expectancy to IEC 60252 2001 | Class C |
| Rated capacitance CR | 3.15uf 4uf 5uf |
| Tolerance | ±5% |
| Rated voltage VR | 450VAC |
| Rated frequency fR | 50/60 Hz |
| Maximum ratings | |
| Maximum permissible voltage Vmax | 1.1 ∙ VR (VR = Rated voltage) |
| Maximum permissible current Imax | 1.3 ∙ IR (IR = Rated current) |
| Routine Test | |
| AC test voltage terminal to terminal VT | 2.0 ∙ VR, 10s |
| Insulation voltage terminals to case | 3000 V AC, 2s |
| Insulation resistance Rins or time constant t Rins at 20 °C, rel. Humidity £ 65%, (minimum as-delivered values) | 10000 s |
| Dissipation factor tan d at 20 °C/20°C | £1.0 ∙ 10-3 (100 Hz) |
| Maximum rate of voltage risedV/dtmax | 10 V/ms |
| Climatic data | |
| Climatic category | 25/85/21 to IEC 60068-1 |
| Lower category Tmin | –25°C |
| Upper category Tmax | +85 °C |
| Damp heat test ttest | 21 days |
| Mechanical and thermal properties of terminal insulator material | |
| Terminal material | |
| n UL 94 V2 compatiblecompatible | |
| n Grow wire test to IEC60335-1/IEC60695-2-1 | Self-extinguishing within 2 seconds of withdrawing glow wire without Igniting wrapping tissue to GWT |
| n Part is compatible to EN 60335-1 | |
| Compatibility to RoHS | |
| Compliance to directive 2002/95/EC | |
| Approvals: See table for approved ratings | |
Dimensional drawings CBB60
|
VR Vac |
CR mF | Case dimensions φD × H mm |
D1 mm |
|
| 450 | 3.15 | 25*58 | 25 |
|
| 450 | 4 | 25*58 | 25 |
|
| 450 | 5 | 30*57 | 30 |
|
