Home > Products > Other Capacitors > Line filter power saver big capacity capacitor

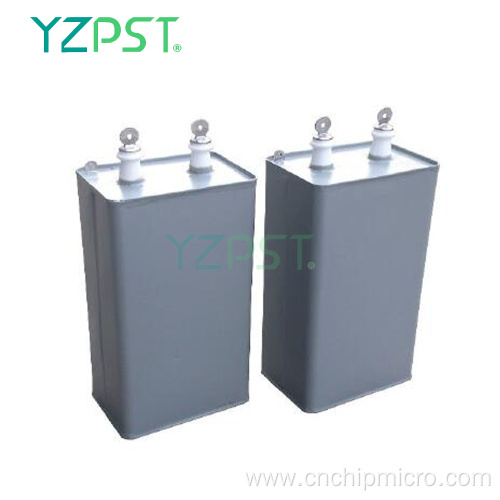

Line filter power saver big capacity capacitor

Payment Type:
L/C,T/T,Paypal
Incoterm:
FOB,CFR,CIF
Min. Order:
1
Transportation:
Ocean,Air
Port:
Shanghai
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.YZPST-AFM1.2-211-1T

BrandYZPST

Supply Ability & Additional Information

Productivity10

TransportationOcean,Air

Place of OriginCHINA

Supply Ability50

CertificateISO9001-2008,ROHS

HS Code85322590

PortShanghai

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF

Locomotive Capacitors Shunt Filtering Capacitors

YZPST-AFM1.2-211-1T


In all of the need to convert alternating current to direct current circuit, set the filter capacitor can make electronic circuit performance more stable, but also reduces the alternating pulse wave disturbance to the electronic circuit.



Electric locomotives var compensating system

Electric locomotives harmonic filtering

Electric locomotives traction substation shunt capacitors

Electric locomotives overvoltage protection

Locomotive DC power supply


Electrical characteristics
Var power Qn 100-334kvar
Tolerance on Cn -5%-+10%
Un/DC Rated Voltage range 1.2kV to 8.4kV(AC)
Tanδ/Loss factor tanδ ≤0.00065(20℃,At20℃, 50Hz)
Maximum stable overvoltage 1.1Un
Ambient temperature -25℃-+50℃
Permit height above sea level 1500m,Higher height on request
Impregnant M/DBT oil NO PCB

Standard reference GB 11024.1-2001

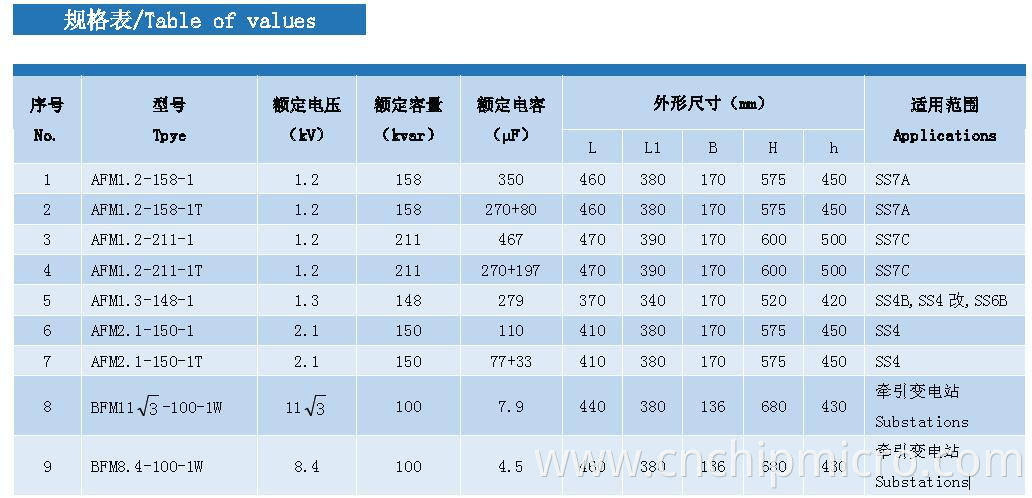

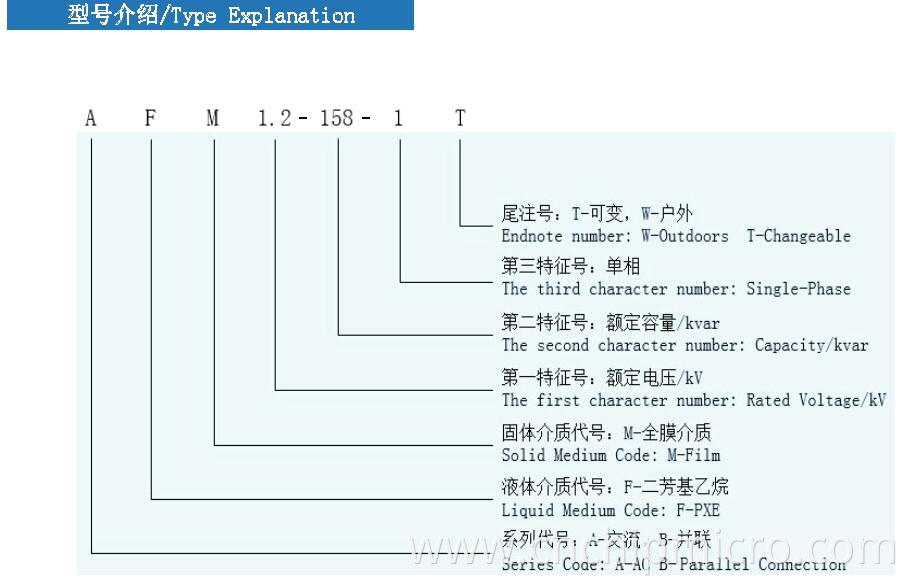

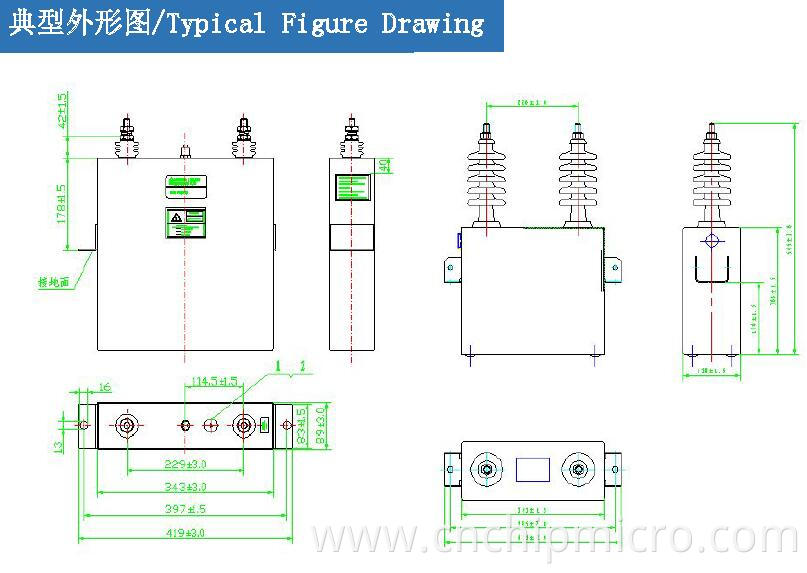

Locomotive Capacitors AFM1 (1)Locomotive Capacitors AFM1 (2)Locomotive Capacitors AFM1 (3)



Product Categories : Other Capacitors
